Produktbeschreibung

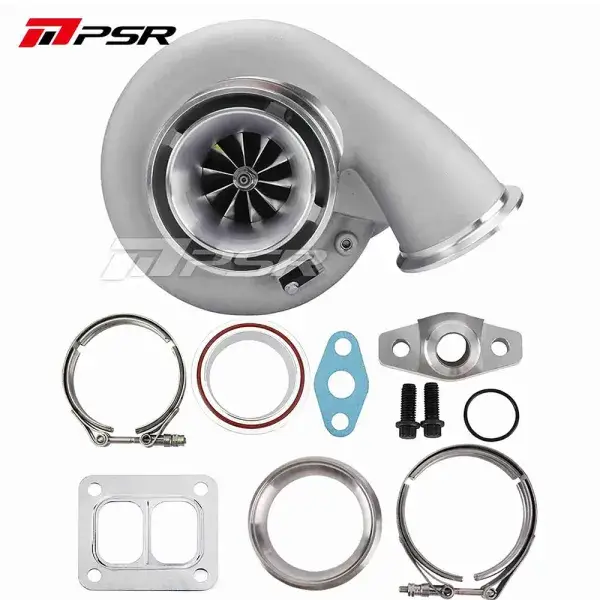

- PSR Class Legal Turbo with 67/98mm Compressor wheel
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Installation Hardware: 3 inch flange kit for Comp. Outlet, T4 Gasket/3 inch flange kit for Turb. Inlet, 3.5 inch/4 inch flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately
Additional Information
- Compressor Wheel: 67x98mm
- Turbine Wheel: 81.6x89mm
- Compressor Inlet: 5 inch Hose
- Compressor Outlet: 3 inch V-Band
- Compressor: Standard
- A/R: 1.28
- Turbine Inlet: T4 Divided
- Turbine Outlet: V-Band
- Water Ports: -6AN
- Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl)
