Beschreibung
Produktbeschreibung

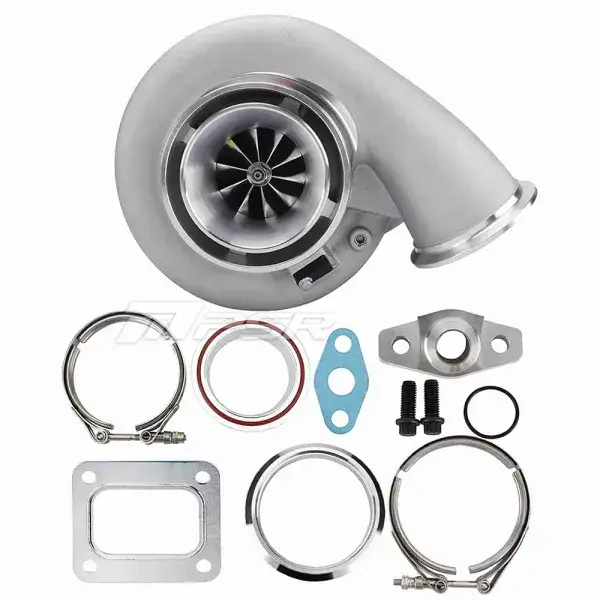

- 6+6 Blade, New design Curved point mill billet compressor wheel which can obtain the most mass flow through the curved vanes and allow increases in engine horsepower output
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with the super core
- Installation Hardware: 3 inch flange kit for Comp. Outlet, T4 Gasket/3 inch flange kit for Turb. Inlet, 3.5 inch/4 inch flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately
Additional Information
- Curved Point Mill Compressor Wheel: 85.15×115/119.67mm
- Turbine Wheel: 89×81.6mm
- Compressor Inlet: 5inch Hose
- Compressor Outlet: 3inch V-Band
- Compressor: T51R Mod
- Turbine Inlet: T4 Open
- Turbine Outlet: V-Band
- A/R: 1.15
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl.)
