Beschreibung
Produktbeschreibung

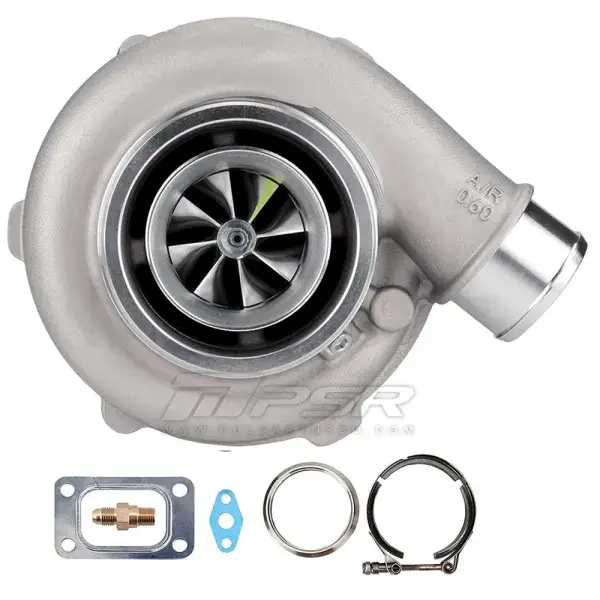

- Aka: GTX3076R Gen2
- Dual Ceramic Ball Bearing System
- 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP
Additional Information
- Compressor Wheel: 58x76mm
- Turbine Wheel: 60x55mm
- Compressor Inlet: 4 inch Hose
- Compressor Outlet: 2 inch Hose
- Turbine Inlet: T25
- Turbine Outlet: 3 inch V-Band (3.55 inch OD)
- A/R: .86
- PSR Loged Billet 11.6psi actuator
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14x1.5
- We highly recommended running water cooling for better durability.
